Horizontal Coulter Mixer 9.9KW For Pigment Powder

  • 1
  • 2

Brand Name : Guojin

Model Number : HPM-0.5

Certification : ISO

Place of Origin : China

MOQ : 1 set

Price : Negotiable

Supply Ability : 10 sets per month

Delivery Time : 20-30days

Packaging Details : Standard export Carton

Item Name : Horizontal Pigment Powder Coulter Mixer Factory Price

Application : Medicine Processing, Chemicals Processing, Plastics Processing, Food Processing

Model type : HPM-0.5

Mixed amount : 200-300kg/batch

Equipped power : 9.9kw

Weight : 1100kg

Mixing Type : Batch mixing

Heating source : electrical

Contact Now

Horizontal Pigment Powder Coulter Mixer Factory Price

1) horizontal plough mixer consists of U-shaped containers, plough mixing blade and transmission components.

2) The ribbon including continuous and disconnect.

3) The helical ribbon blade is made of a double or triple outer spiral the mateial from both sidesbrings together the central inner spiral the material transported from teh center to the sides to form a stream mixed.

Product Working Performance

1) Adding a liquid and pasty materials mixed in the plough mixer for viscous of cohesive ganule mixing and granule has a good effect, cylinder cover can be made of a wide-open door, so that the equipment for cleaning.

2) Can be added to the mixer barrel outer jacket, cooling or heating of the material is achieved by injecting the cooling medium to the jacket.

3) Discharge in the form of a phenomenon of material accumulation and mixing dead ends, reliable trim seal, frequent switching lakage.

Product Application
It is suitable for the mixing of solid-solid(powder and powder),solid-liquid (adding a small amount of liquid into the powder) and some compound technology. Process such as granulating wet particle and drying, especially it is suitable for the mixing of viscous material or glue 一 like additive.

Technical Parameters

Model HPM-0.1 HPM-0.3 HPM-0.5 HPM-1 HPM-2 HPM-4 HPM-6 HPM-8 HPM-10 HPM-15
Mixed a mount/batch(kg) 40-60 120-180 200-300 400-600 800-1200 1600-2400 2400-3600 3200-4800 4000-6000 6000-9000
Equipped power(kw) 6 8.4 9.9 23 30.5 38 38 46 53 82.5
Weight(kg) 430 950 1100 1800 2520 3220 6750 7200 7500 9200

Product Feature

1. The mixing time is short, and it has good adaptability to the mixing of materials with large diference in particle size and density.

2. The strucral characteristics are especially suitable for liquid additioin mixing and wet granulation, and the particle size iss between 0.3-3mm and 3mm.

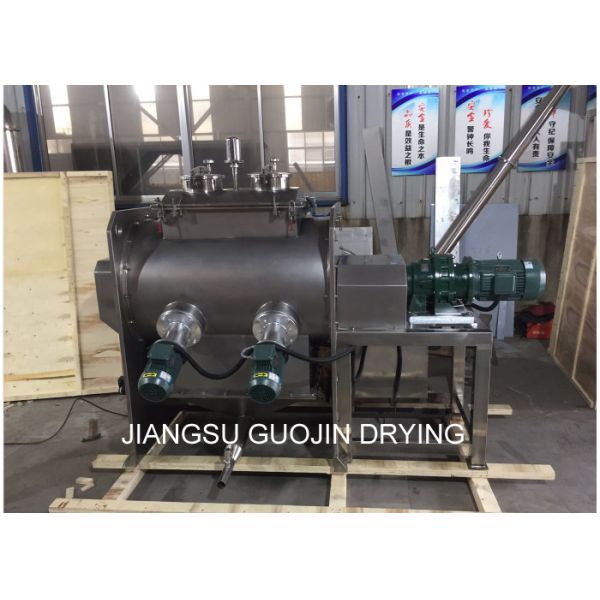

Horizontal Coulter Mixer 9.9KW For Pigment Powder

Product Show

Horizontal Coulter Mixer 9.9KW For Pigment Powder
Contact Me
Horizontal Coulter Mixer 9.9KW For Pigment Powder

electrical, steam, natural gas or other
